FEATURES

• Compact system design :Allow simple renovation and installation; efficient regular maintenance;
• Durable and stable for sea port environment application;
• Super Ni-MH storage battery: New Hi-Tec product for Port equipment application;
• Stable and simply system configuration;
• Low fuel consumption generator set: Only for charging the battery;
• Intelligent central control system: Allow to collect the data of RTG and the condition of Super Ni-MH storage battery for controlling the generator set start/stop, AFE AC/DC driver output, and recording the data of generator set, battery, etc.;
• Data sim card: Be able to transmit the data to Powertec server for monitoring the system operation. (Optional)

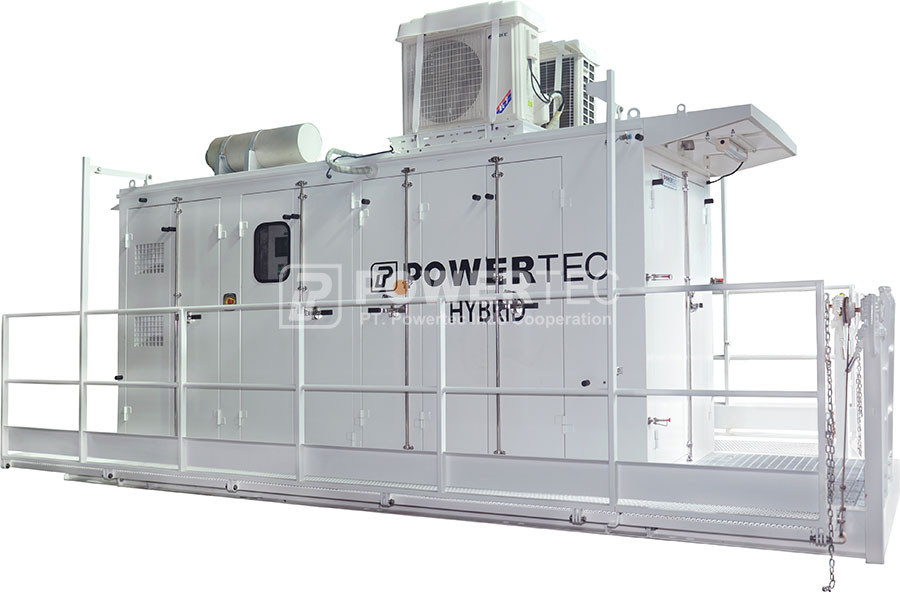

1. Integrated protective system-room

Combined by the separate generator set room and electrical room (storage battery, AC/DC driver, DC/AC converter, AC, etc.)

• Be capable of dismantling the generator set from the system-room for top/general overhaul;
• Each battery pack was equipped with the independent insulation board for convenience service/replacement
• Acrylic plate are installed on every electrification unit for safety consideration;
• Mushroom type roof ensure the enough air inlet and prevent the raining;
• The accurate fuel measurement system makes the details fuel consumption measure possible.
• The Electrical room adopts the container type lock for leak proofing and heat insulation;
• Customized design allow to cover different brands equipment and different driver system, also different customers standard;.
• Economic and efficiency system made the ROI low to 1 year;

2. Super Ni-MH storage battery

• High safety and reliability:
  1C unlimited charge and discharge.
  15Kg/cm2 double safety valve for fast air exhaust.
  100Kg/cm2 pressure bearing.
  No explode or burning guarantee under any kind of operation.

• Wide operation temperature range(-30℃ to +65℃):
  3C fully continuous charge and discharge under -20℃.
  10C fully continuous charge and discharge under +60℃.

• Low heat production & energy leakage:
  -Adopt 37.5Wh/30Ah battery(0.3mΩInternal resistance) to ensure the low heat production.
  -Up to 80% for 1 year and 50% for 3 year of the battery will be kept (Begin with 100%).

• Fast charge and discharge ability:
  Be able to do the continuous charge with 20C, and continuous discharge with 30C.
  Available for 30C pulse charge (the battery can be charged to 80% within 2.5min) & 40C pulse discharge (Full discharge within 2min).

• Long storage period for charged electric:
  Maintain 80% charged electric after 1 year(full charged)
  Maintain 50% charged electric after 3 year(full charged)

• Long life cycle:
  5 years standard warranty, can be extended to 8 years with yearly inspection service

• Simple installation, dismantle, re-cycling:
  Modularize and paten connection design allows safe and fast replacement;

• Environmental-protective material and high value recycle:
  -Up 95% of all materials can be re-used
  -Up to 30% of the total battery pack value can be recycled by battery factory;

3. Diesel generator set
